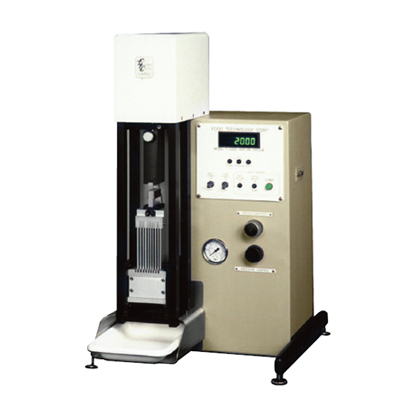

Analizator teksture T-2000, FTC

T-2000 je pravi izbor za laboratorije. Hidraulički sistem za analizu daje do 3 000 kg sile, za testiranje veoma tvrdih proizvoda i uzoraka velikih dimenzija.

The texture measurement system features adjustable hydraulic pressure and stroke speed as well as integral calculation. The T-2000 comes with the industry standard Model CS-1 Kramer Shear-Compression Test Cell as well as one model FTA Force Transducer.

Transducers, or “load cells”, are available in a ±10, 50, 100, 250, 500, 1000 and 3000 Lbs of force ranges. The T-2000 can accept many of the numerous test cells available from Food Technology and can be delivered to display in metric or imperial measurement units.

Supplied with: TP-6 Ultra Quiet, Variable Speed and Pressure Texturepress, TG-4E-I Texturegage with Display in Peak Force and Integral (work), rs-232 port with software, one FTA Load cell (user specified range), CS-1 Test Cell and Operators Manual. Factory set to display results in Metric or Imperial units

System Specification
Speed Variable 0-30 inches/minute or 0-75 cm/minute
Stroke distance 3.5 inches / 8.9 cm
Maximum force 3000 pounds / 1,363 kgs
Display units Pounds of force, Newtons (kgs), or Tenderometer units (Integral display inch/pounds or Joules)
Data ouput RS232 serial
Power 120V/60 Hz or 240V/50 Hz
Dimensions 19 x 20 x 34 inches / 48 x 51 x 86 cm
Weight 125 lbs / 56 kg

Za više informacija pogledajte katalog
