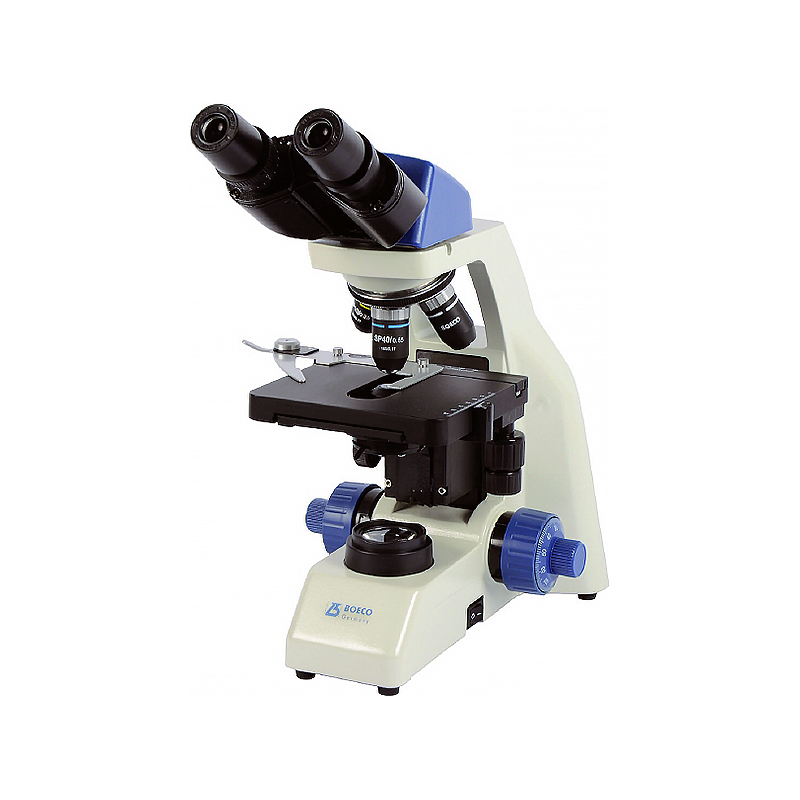

Binokularni i trinokularni mikroskop BM-190SP

Tehnička specifikacija:
Magnification: 40X- 1000X
Optical system: Siedentopf Viewing Head, 30° inclined, 360° rotatable, Interpupillary Distance 47 – 78 mm, diopter adjustable (left)
Nosepiece: Backward quadruple revolving nosepiece
Eyepiece: Pair Eyepiece WF 10X /18 mm Widefield
Objectives: BOECO Semi-plan Achromat DIN Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1,25 (S, Oil)
Stage: Double layer mechanical specimen stage. 140 x 140 mm moving range 75 x 50 mm, Right hand stage handle
Focusing: Low position, coaxial coarse and calibrated fine focus control, with graduation reading 2 microns per division. Total focusing range 25 mm, Safety stop unit.
Condenser: Abbè Brightfield condenser, N.A. 1,25, Integrated Iris diaphragm and filter tray. With rack & pinion height adjustment
Illumination: S-LED, brightness adjustable.
Body /power: Sturdy body with supportive rubber and inbuilt power supply 100-240V, 50/60 Hz
Supplied with: Dust cover, green filter, immersion oil, instruction manual
Dimension: 208(W) x 266(D) x 370(H) mm
Weight: Net weight 6,9 / 7,2 kgs.
Packing: Two styrofoam shelves in a cardboard box, 290(W)x330(D)x530(H) mm
Kat.broj: BOE 1900.200; Model: BM-180/SP, binokularni
Kat.broj: BOE 1900.230; Model: BM-190/T/SP, trinokularni
