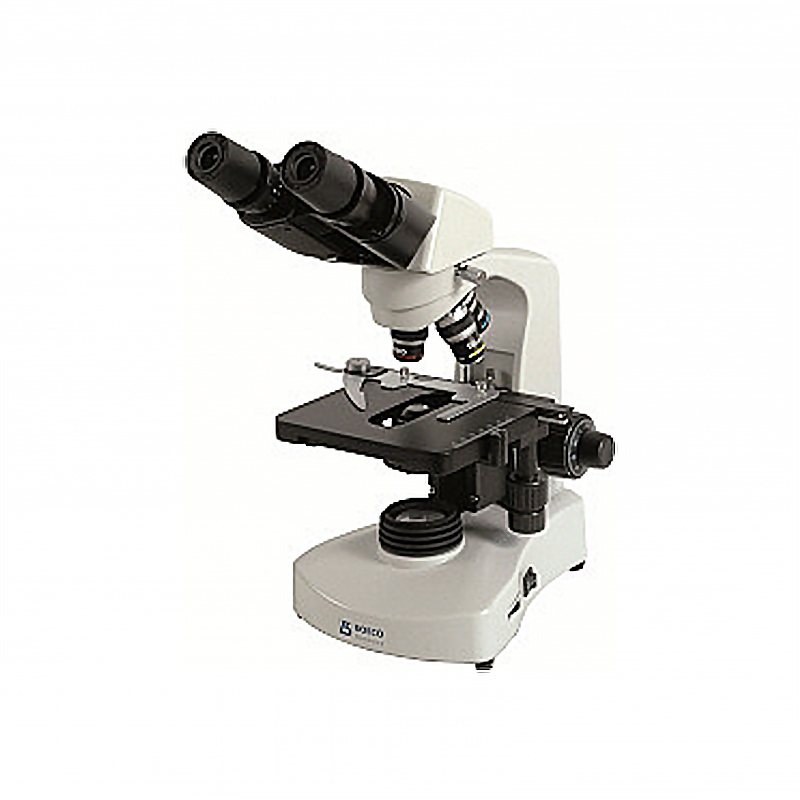

Monokularni i binokularni mikroskop BM-117

Tehnička specifikacija:
Optical System: Binocular or Monocular Head, 30° inclined, 360° rotatable, interpupillary distance 48 -75 mm
Nosepiece: Backward Quadruple revolving nosepiece
Eyepiece: Widefield Eyepiece WF 10X /18 mm
Objectives: Achromatic DIN Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1.25, Oil, (S)
Stage: Double Layers mechanical stage 132 x 142 mm, moving range 75 x 40 mm
Focusing: Coaxial Coarse & Fine Adjustment System Range 24 mm, Fine Division 0,004 mm
Condenser: Abbe Condenser, n.A. 1,2, with iris diaphragm and filter
Illumination: S-LED, light brightness adjustable
Body / power: Sturdy body with supportive rubber and inbuilt power supply 110-240V, 50/60Hz
Supplied with: Dust cover, green filter, spare fuses, Immersion oil
Dimensions: 170 x 310 x 355 mm, netweight 5,4 / 5,0 kgs
Packing: Styrofoam shelve in a cardboard box
Kat.broj: BOE 1170.100; Model: BM-117 binokularni, 220V 50/60 Hz
Kat.broj: BOE 1170.110; Model: BM-117 monokularni, 220V 50/60 Hz

Za više informacija pogledajte katalog
