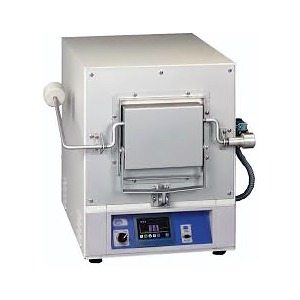

Električne pećnice „Select-Horn-TFT“, Selecta

TEMPERATURE CONTROLLABLE UP TO 1150 °C.
SET ACCURACY: ±1 °C OF THE SET VALUE. RESOLUTION: 1 DIGIT.
DIGITAL ELECTRONIC CONTROLLER FOR TEMPERATURE AND TIME WITH TFT COLOUR TOUCH SCREEN
SAFETY:
PROBE BREAK DISCONNECTS THE POWER TO THE FURNACE AUTOMATICALLY.
MICROSWITCH THAT DISCONNECTS THE POWER OF THE HEATER ELEMENTS WHEN THE DOOR IS OPEN.
FLIP DOOR THAT CAN ALSO BE USED AS A SUPPORT TRAY AND USER PROTECTED FROM THE HOT INTERNAL SURFACE.
APPLICATIONS
Incineration processes, drying, degradation, re-heating,
thermal treatments etc.
FEATURES
Interior chamber constructed from high quality
lightweight refractory bricks, with a high alumina
content with no asbestos or iron oxide.
Evenly distributed exceptional long life heating ele-
ments, annealed frequently at a high fusion point.
Excellent thermal insulation made from Ceramic fibre
of low density and thermal conductivity.
Low consumption with maximum performance.
Rapid temperature recovery after the door has been
opened.
Flap door with easy to change components.
Support tray made from special steel used as a base to
support assay material.
USB and RS-232 output.
CONTROL PANEL
General
Main switch.
TFT touch screen 4.3’’.
Clock calendar.
Two working modes, normal or programming.
SPA – FRE – ENG menu.
Self-test on starting.
Temperature control auto-tuning.
ºC/ºF selection.
Type K probe.
Normal mode
Set point temperature selection
Up ramp or no ramp.
Stability time from 1 min to 99h or continuous.
Programming mode
10 programs capacity.
6 segments per program.
Stability time in each segment from 1 min to 99h (or
continuous in the last segment)
Up ramps between segments or no ramps
Daily – weekly On / Off programming.

Za više informacija pogledajte katalog
