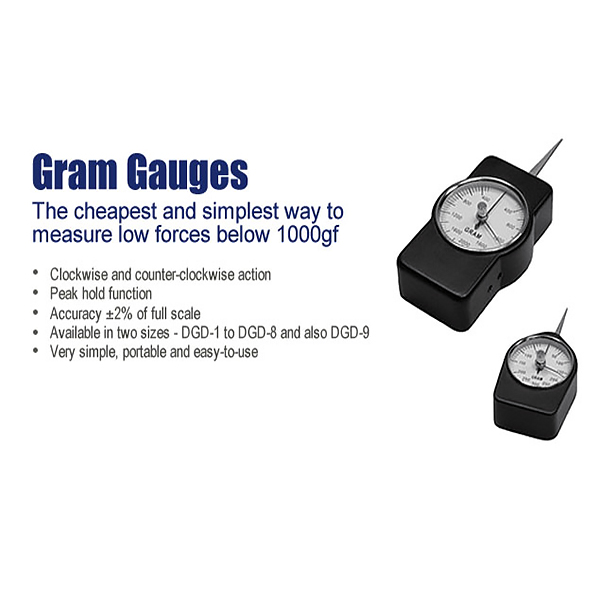

Gram merač, Mecmesin

The cheapest and simplest way to measure low forces below 1000gf.

These handheld gauges offer a very quick and easy method of measuring forces between 1 and 1000 grams force. Each gauge is equipped with a slave pointer to indicate the peak reading – suitable for measuring very basic tests. For improved precision and test functionality, have a look at our Digital Force Gauges.

Key Features
– Clockwise and counter-clockwise action
– Peak hold function
– Accuracy ±2% of full scale
– Available in two sizes – DGD-1 to DGD-8 and also DGD-9
– Very simple, portable and easy-to-use

7 Models 5gf to 1000gf

Dimensions – Models DGD-1 to DGD-8
– Length: 92mm (3.6″),
– Width: 44mm (1.7″),
– Weight: 78g (0.17lb)

Dimensions – Models DGD-9
– Length: 134mm (5.2″),
– Width: 56mm (2.2″),
– Weight: 173g (0.38lb)

(Calibration certificate available, at additional cost)

Za više informacija pogledajte katalog
