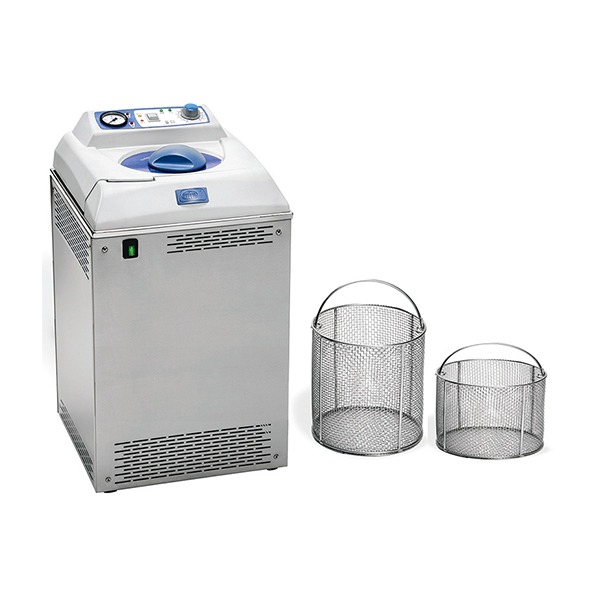

Autoklavi za sterilizaciju “MICRO 8”, “MED 12” i “MED 20”, Selecta
Autoklavi za sterilizaciju “MICRO 8”, “MED 12” i “MED 20”
PRESSURE REGULATOR THERMOSTAT OF 1 AND 2 bar. TEMPERATURES 121 ºC AND 134 ºC.
VERTICAL DESKTOP MODELS. “MICRO 8” CAPACITY: 8 LITRES. “MED 12” CAPACITY: 12 LITRES.
VERTICAL STAND MODEL “MED 20” CAPACITY: 20 LITRES.
SAFETY:
SAFETY VALVE: PREVENTS THE PRESSURE WITHIN THE AUTOCLAVE OVERPASSING THE MAXIMUM SET LIMIT.
SAFETY PRESSURE: DISCONNECTS POWER TO THE HEATER IN CASE OF OVERPASSING THE PRESSURE SET LIMIT.
SAFETY THERMOSTAT: DISCONNECTS THE HEATING IN CASE OF OVERTEMPERATURE OR LACK OF WATER IN THE TANK. THERMALLY INSULATED LID MADE OF MOLDED THERMOPLASTIC.
COMMON FEATURES
AISI 304 stainless steel external case and top.
Stainless steel chamber and lid, with easy opening.
INCOLOY special stainless steel heater element, which provides long life, low corrosion and high temperatures resistance.
Manual air purge when starting(“MICRO 8” model).
Automatic atmospheric purge (“MED 12” and “MED 20” models).
Safety device to prevent lid opening. Starting main switch.
| Model, Kat.br. | Capacity litres | Ø Heigh (usable) cm | Height/Width/Dept (exterior) cm | Power W | Weight Kg |
|---|---|---|---|---|---|
| MICRO 8, 4001745 | 8 | Ø24, 15cm | 40x38x38 | 1000 | 13 |
| MED 12, 4001756 | 12 | Ø24, 26cm | 46x38x38 | 1800 | 18 |
| MED 20, 4001757 | 20 | Ø24, 41cm | 70x38x38 | 2500 | 41 |
