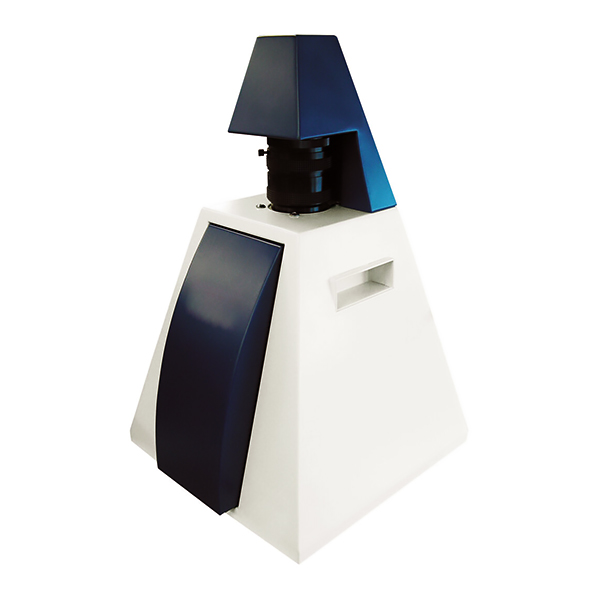

Gel dokumentacioni sistem WGD20 i WGD20S prenosivi sa kamerom i softverom, Witeg
Ideal for:
DNA, RNA gel imaging capture and analysis
Features:
the most cost-effective system
high precise and large caliber optical lens with zoom, focus and iris control
digital CCD camera (resolution 1360×1024, 1.5 m pixel) with portable darkroom10-bit CCD, available for 8-bit grey level image capturing
very compact portable darkroom system for highest flexibility
existing transilluminator can be used
USB 2.0 interface for real-time images and data transfer
power supply via USB
WiseCapture II™ software: easy and fast view, capture and save gel images (included)
TotalLab™ Quant software (WGD-20S): fully automatic, single button press complete image analysis in interesting area
CE certified and unique serial number for tracing
| Moled | WGD-20 | WGD-20S |
|---|---|---|
| CCD & pixel size | 1/2' CCD,4,65X4,65 um | 1/2' CCD,4,65X4,65 um |
| Lens mount & optical size | C mount, 7,6x6,2mm | C mount, 7,6x6,2mm |
| Interface & Power | USB 2,0 | USB 2,0 |
| Iris & focal length | F1,0-close, 8-48mm | F1,0-close, 8-48mm |
| Operation temperature | -10°C do +50°C | -10°C do +50°C |
| Software capability | Windows XP, Vista & 7 | Windows XP, Vista & 7 |
| DNA analysis software included | WiseCapture IIth | WiseCapture IIth, TotalLab th Quant |
| Dimension & weight | 260x260x430mm, 9 kg | 260x260x430mm, 9 kg |
| Packing size | 400x350x510, 180kg | 400x350x510, 180kg |
| Order number | DH.WGD00020 | DH.WGD00024 |
Više dodatnih informacije je dostupno u katalozima.
Kontaktirajte nas za sva pitanja.
