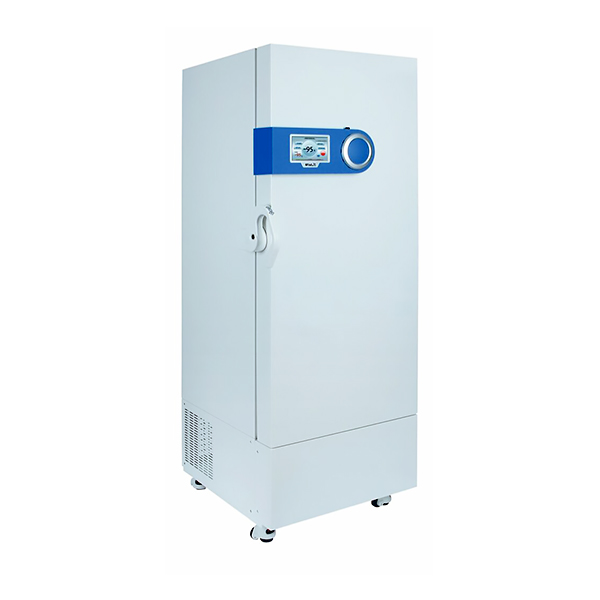

Zamrzivač SWUF UniFreeze SmartLab 308/393/503/714 Liter -86°C, Witeg
Ideal for:
ultra low refrigeration
Features:
CFC free refrigerant (R-404A)
UniFreez™ system
automatic vacuum breaker – easy to re- open door
external temperature sensor hole
block condenser removes filter & causes of related failure
filter-free mechanism lowers heat from the compressor
easy maintenance and improved performance
high-quality insulation panel and inner doors ensure defrosting around outer surface
easy monitoring and control – eye level controller
stainless steel interior, powder-coated steel body and inner door
3x stainless steel shelves to separate chamber into 4 sub-chambers included
castors for easy movement
UL/CUL, CE & RoHS certified and unique serial number for tracing
Safety mechanism:
push alarm service to your smartphone
sensor error detection
door locking system, door open error
door ajar and power failure alarm
standard warning and alarm functions
Controller:
Smart-Lab™ controller with 7? full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnostic function
automatic data recording
data transfer to PC by USB memory
Internet connectivity with WiFi
| Model | SWUF-300 | SWUF-400 | SWUF-500 | SWUF-700 |
|---|---|---|---|---|
| Capacity | 308 L | 393L | 503L | 714L |
| Temperature range & sensor | -86°C to -65°C | -86°C to -65°C | -86°C to -65°C | -80°C to -65°C |
| Temperature range & sensor | at 30°C room temperature & 30% humidity, PT 100 sensor | at 30°C room temperature & 30% humidity, PT 100 sensor | at 30°C room temperature & 30% humidity, PT 100 sensor | at 30°C room temperature & 30% humidity, PT 100 sensor |
| Compressor | Hermetic type | Hermetic type | Hermetic type | Hermetic type |
| Condenser type | block condenser, no pin, filter-free | block condenser, no pin, filter-free | block condenser, no pin, filter-free | block condenser, no pin, filter-free |
| Max. rack quantity | 12 pcs. of 15 (3x5) placed racks (RFU3040) | 16 pcs. of 15 (3x5) placed racks (RFU3040) | 16 pcs. of 20 (4x5) placed racks (RFU50) | 24 pcs. of 20 (4x5) placed racks (RFU50) |
| Internal chamber dimensions (W x D x H) | 470 x 500 x 1310 mm | 600 x 500 x 1310 mm | 600 x 640 x 1310 mm | 880 x 620 x 1310 mm |
| External chamber dimensions (W x D x H), net weight | 710x750x1900mm, 190kg | 840x750x1900mm, 210kg | 840x890x1900mm, 240kg | 1120x870x1900mm, 320kg |
| Packing size (W x D x H), gross weight | 110 x 110 x 222 cm, 275 kg | 116 x 116 x 222 cm, 296 kg | 116 x 124 x 222 cm, 327 kg | 140 x 140 x 221 cm, 442kg |
| Power supply | 1 Phase AC 120V, 60 Hz or AC 230V, 50/60 Hz | 1 Phase AC 120V, 60 Hz or AC 230V, 50/60 Hz | 1 Phase AC 120V, 60 Hz or AC 230V, 50/60 Hz | 1 Phase AC 120V, 60 Hz or AC 230V, 50/60 Hz |
| Power consumption | 352 w/h | 373 w/h | 458 w/h | 503 w/h |
| Order number 230V | DH.SWUF00300 | DH.SWUF00400 | DH.SWUF00500 | DH.SWUF00700 |
Više dodatnih informacije je dostupno u katalozima.
Kontaktirajte nas za sva pitanja.
